The URC-2002 Universal Reader Controller allows control of two access control points (doors). It utilizes flash firmware for easy upgrades, and employs fully distributed intelligence for off-line operations. Decisions such as access level changes, schedule activation and card expiration are made by the URC-2002 controller without the need of a computer.

The panel contains on-board clock and memory backup as well as thermal overload protection. URC-2002 supports fully supervised communication via RS-485 and TCP/IP with selectable communication speed up to 56.6Kbps.

Connect to the Integra32 Server PC via LIF-200 TCP/IP Gateway or directly via a USB/RS485 converter, for a total of up to 16 panels per controller network.

Each URC-2002 Universal Reader Controller has a capacity of storing 3,000 unique 10 digit card numbers, 10 unique site codes and 3,000 off line transactions in its event buffer.  In addition Each URC-2002 Universal Reader Controller can simultaneously read up to 5 distinct  Wiegand or Clock & Data card formats.

The URC-2002 has 4 fully programmable four state monitoring, NO / NC supervised inputs & 4 fully programmable Fail Safe / Fail secure outputs (2 x 5A @ 30VDC SPDT dry contacts and 2 x 12VDC 100mA electronic drivers).

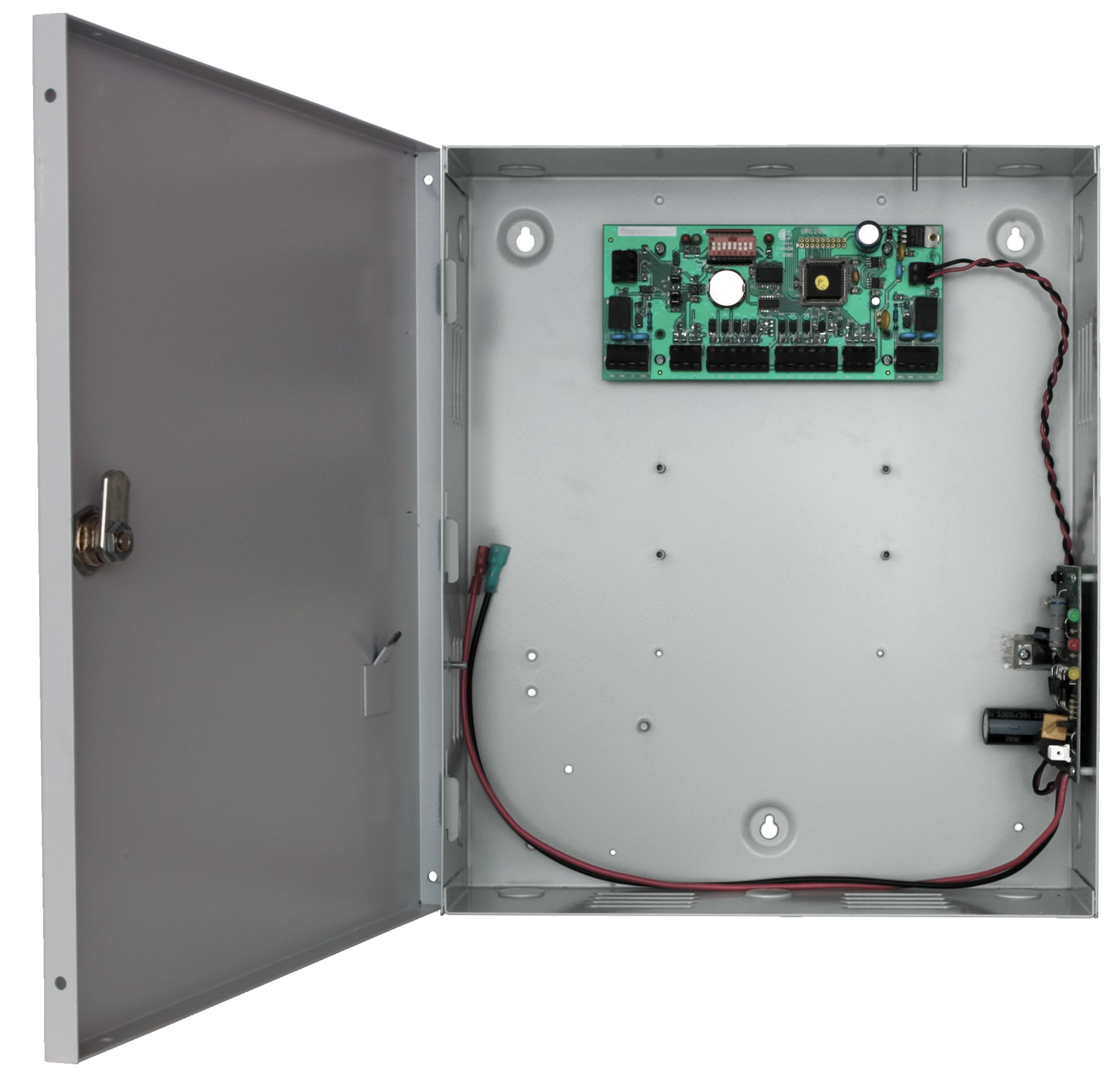

The URC-2002 Universal Reader Controller includes a lockable metal enclosure and a built in 2A 12VDC power supply.
